DAS-FLARE

COTS

CHAFFS & FLARE Emulator

DAS-FLARE is an Emulator for simple and effective test of the countermeasures dispensing system unit can be used for testing and training purposes in labs.

The standard configuration is normally based on two separated rackmount units, one unit simulate the cartridges dispenser: 8 or 16 channels; while the other unit is used to configure each channel.

The configuration of the channels can be done on the two 4,3” touch screen o by the WEB-interface.

Part Numbers
DAS-CFDISP-8	1U rackmount Chaffs &Flare dispenser emulator - 8 channels
DAS-CFDISP-16	1U rackmount Chaffs &Flare dispenser emulator - 16 channels
DAS-CFTCH-8	2U rackmount Flare configuarator by touch screen & Web interface - 8 channels

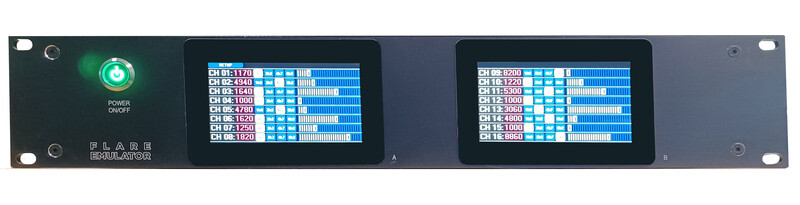

DAS-CFTCH-16	2U rackmount Flare configuarator by touch screen & Web interface - 16 channels

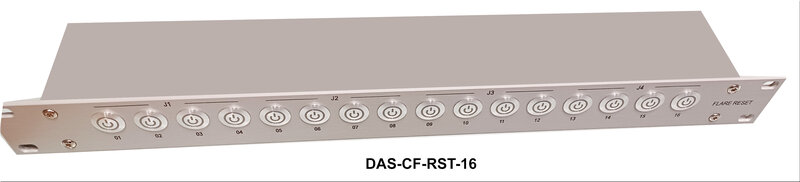

DAS-CF-RST-16	1U rackmount "reset gun"

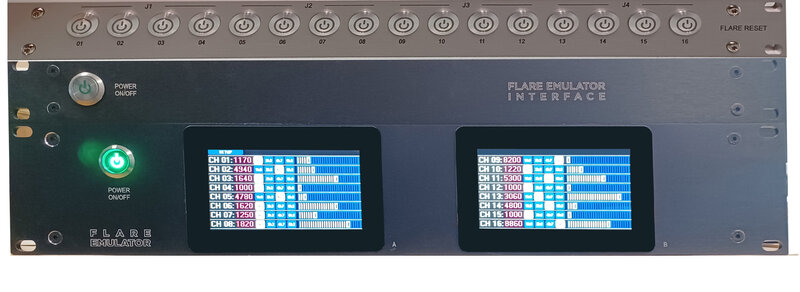

DAS-CFDISP-ALL-16	4U rackmount complete Kit for with Chaffs & Flare dispenser, reset box and configurator box

Specifications
Configurator display:	2 x 4,3" touch screen 480x272 pixels
Processor:	Dedicated CPU
WEB GUI	Yes
Power inputs:	12Vdc with external 230 Vac to 12Vdc converter included
Dimensions:	2U (483x88x220) for configurator 1U (483x44x220) for dispenser
Temperature op. conditions:	0°C to 55°C (IEC-60068-2-1, IEC-60068-2-2, IEC-60068-2-56)
Relative humidity op. conditions:	10% to 90%, noncondensing (IEC-60068-2-1, IEC-60068-2-2, IEC-60068-2-56).
