DAS-HD68-Serial

PANEL INTERFACES > I/O INTERNAL RACK

Part Numbers
DAS-DIN-RS		Interface for the "single DAS-1028A PMC module - 2 x DB25 connectors on front - Up to 8 channels RS-232/422/485
DAS-DIN-RSS		"Selectable version" - 1 x DSUB 25 pin connector - Up to 6 channels RS-232/422/485 configuraed as Input or Output
DAS-DIN-AR		Interface for the DD-40100xx PMC module - 2 x DB25 connectors on front - Up to 8 channels ARINC-429
Specifications
Module size:		(125x80x45 LxDxH)
Mounting		DIN Rail
I/O channels		8 RS232/422/485 or ARINC-429
Output		1 or 2 Harting DSUB 25 poles
Input		Harting 68 pole SCSI to DAS-RTM cable included

DAS-HD68-SERIAL

DIN Rail High Density serial Interface

DAS-HD68-Serial is our solution to Interface Serial Lines with a DIN-Rail module

Versions

We produce 3 different version:

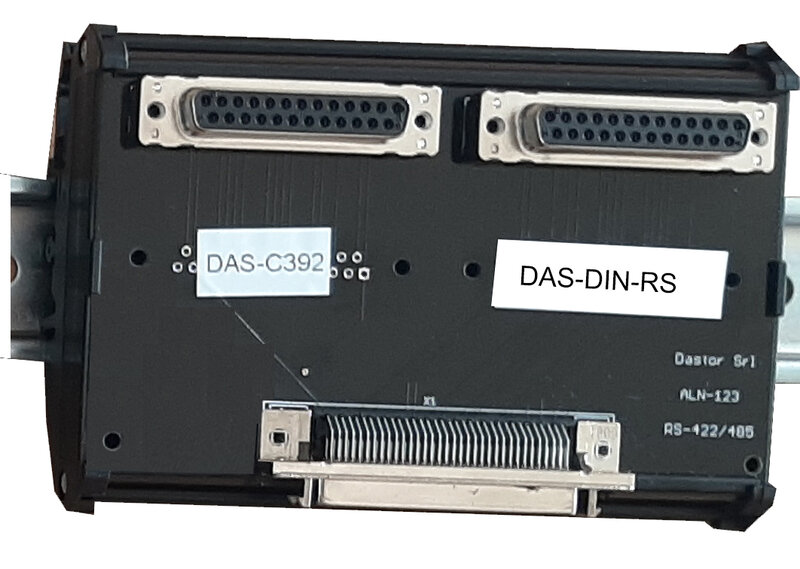

- DAS-DIN-RS used in conjunction with one DAS-RTMVME interface and with the 68pin cable to interface the ACTIS 1028A PMC module

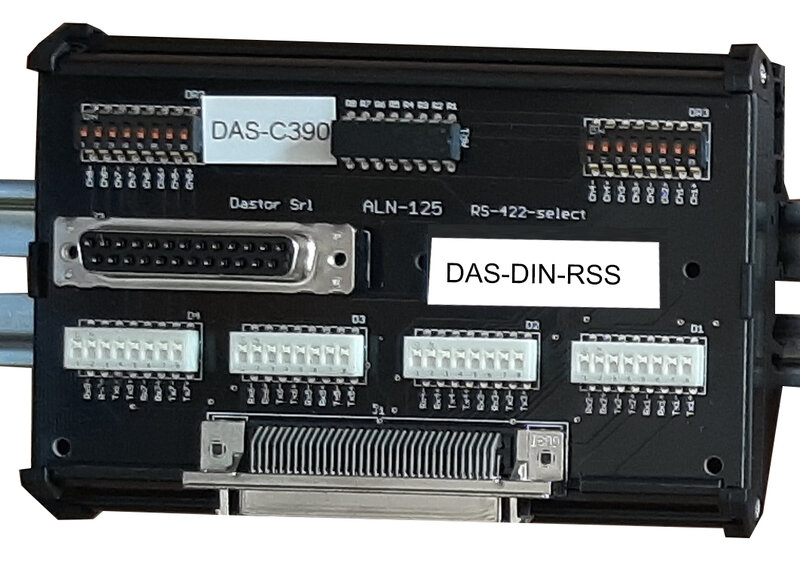

- DAS-DIN-RSS "Configurable RX/TX channels with dip-switch" used in conjunction with one DAS-RTMVME interface and with ACTIS 1028A PMC module

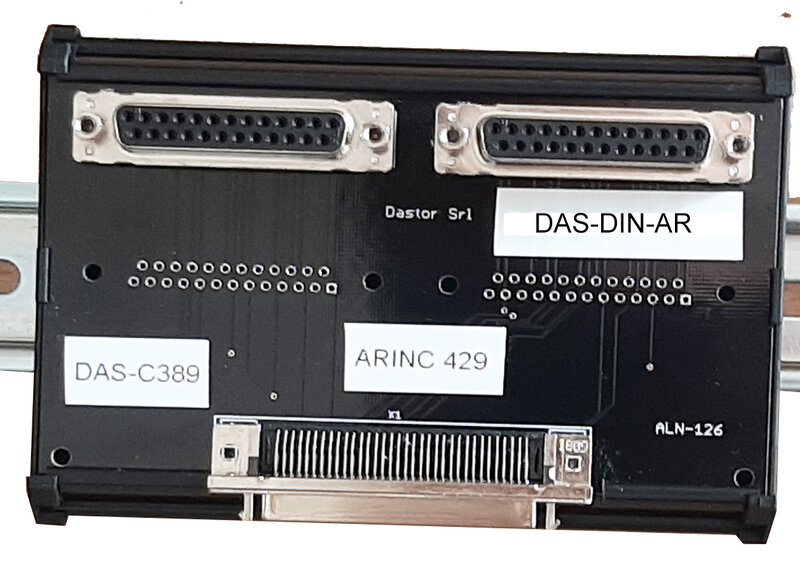

- DAS-DIN-AR Is the ARINC-429 Interface. Must be used in conjunction with one DAS-RTMVME interface and DD-40100xx PMC module.

DAS-HD68DS-AR

DIN rail mount carrier for Arinc 42985
- Remote interface for DD-40100xx PMC
- Output 2 x DSUB 25 pins
- Input 68 pin SCSI connector to DAS-RTMVME
- SCSI cable 3 or 6ft.

330,00€(VAT excl.)

Add

DAS-HD68DS-RS

DIN rail mount carrier for serial RS-422/485
- Remote interface for ACTIS 1028A PMC
- Output 2 x DSUB 25 pins
- Input 68 pin SCSI connector to DAS-RTMVME
- SCSI cable 3 or 6ft.

330,00€(VAT excl.)

Add

DAS-HD68DS-RSS

DIN rail mount "Selectable Version"
- Up to 6 channels RS-232/422/485 as Input/output
- 1 x DSUB 25 pins
- 68 pin SCSI connector to DAS-RTMVME
- SCSI cable 3 or 6ft.

330,00€(VAT excl.)

Add
